Product Description

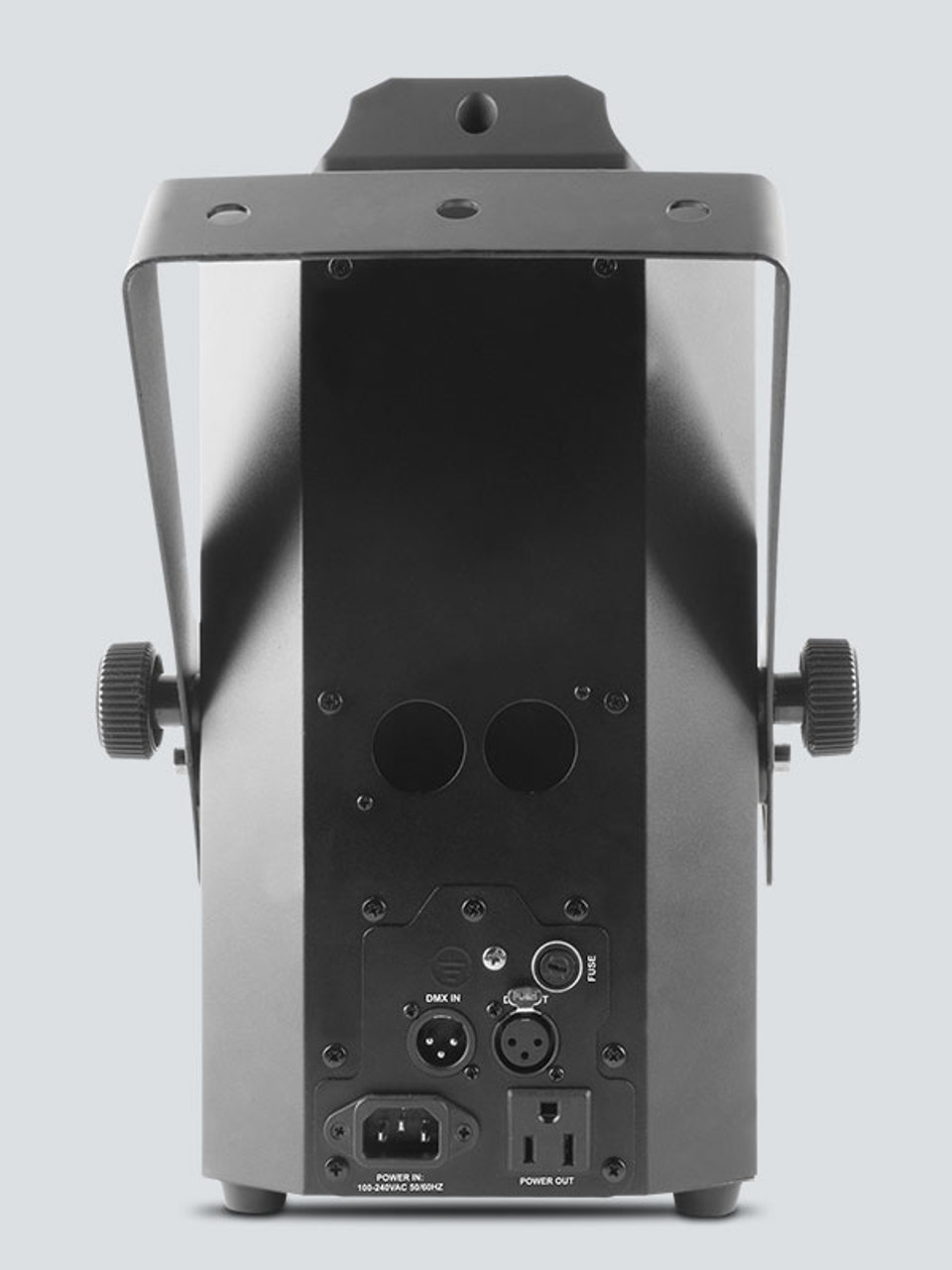

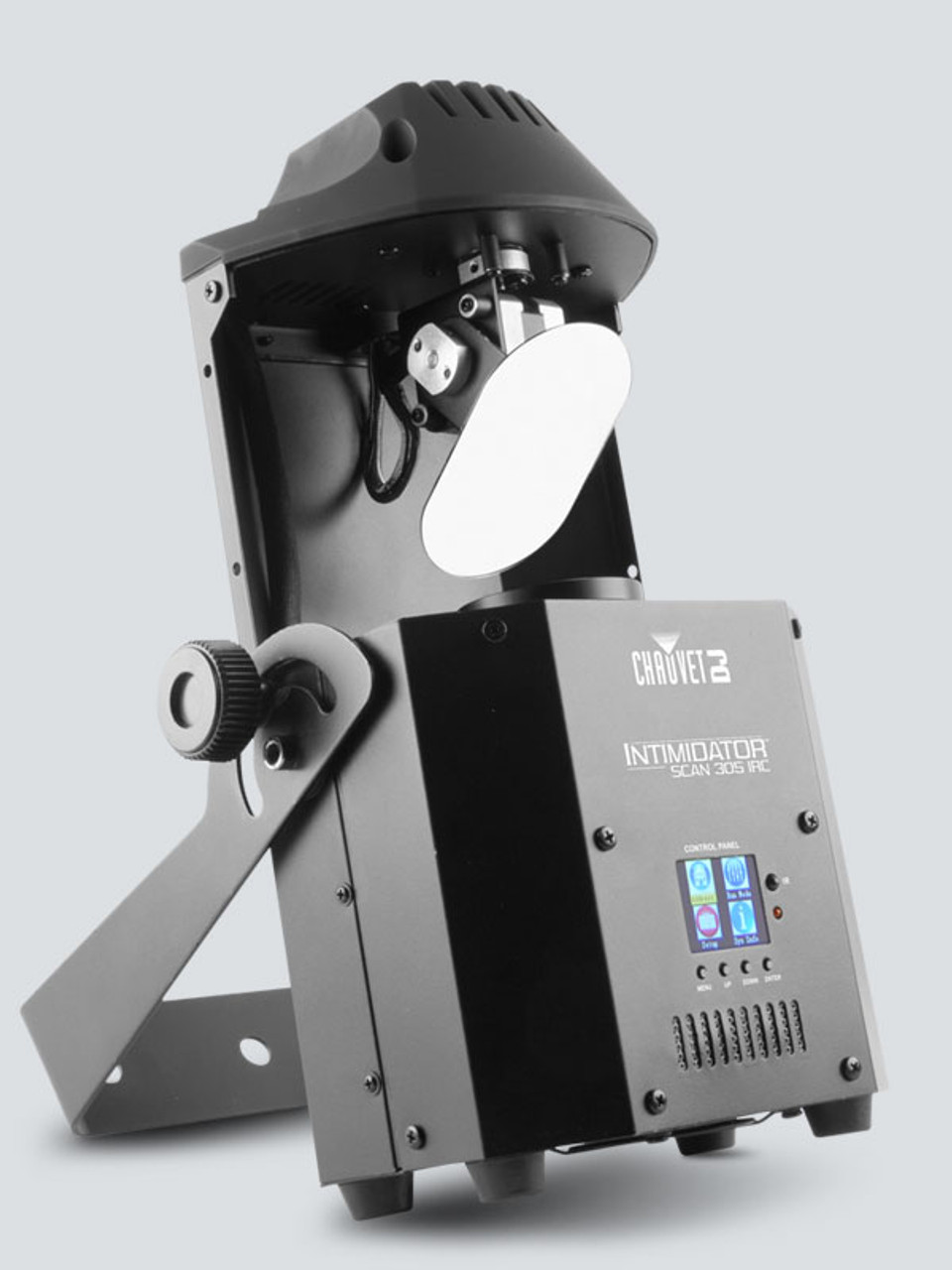

Intimidator Scan 305 IRC
Our Intimidator Scan 305 IRC is a compact LED scanner with a 60 W light source that shines through any environment. Its crisp 3-facet prism allows you to cover larger areas when you split the beam and non-DMX operation is convenient and easy with the optional IRC-6 remote. Link up to 4 fixtures to create eye-catching synchronized shows in automated, sound-active or master/slave modes. Minimize programming time by using the built in movement macros and move-in-black features. Achieve flicker-free video operation with high frequency LED dimming and save time running cables and extension cords by power-linking multiple units together.
Specifications
- DMX Channels: 7 or 11
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 180°/90°
- Colors: 8 + white, split colors, continuous scroll at variable speeds
- Gobos: 7 + open (5 metal + 2 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
- Light Source: 1 (white) 60 W (2.3 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 35 Hz
- PWM Frequency: 1,200 Hz
- Beam Angle: 15°
- Illuminance: 9,110 lux @ 2 m
- Power Linking: 5 units @ 120 V; 10 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 104 W, 1.5 A @ 120 V, 60 Hz
102 W, 0.8 A @ 230 V, 50 Hz - Gobo Size: 23.9mm outside, 20.5 mm image, 1 mm max thickness
- Weight: 10 lb (4.6 kg)
- Size: 16.9 x 10 x 5.7 in (430 x 255 x 147 mm)
- Approvals: CE
- Series: Intimidator
- Primary Use: DJ/Mobile, Bands/Stages, Events, Clubs, Party
- Optional Controllers: IRC-6
What's Included
- Intimidator Scan 305 IRC
- Power cord
- Hanging bracket with mounting hardware
- Warranty card
- Quick Reference Guide
