Product Description

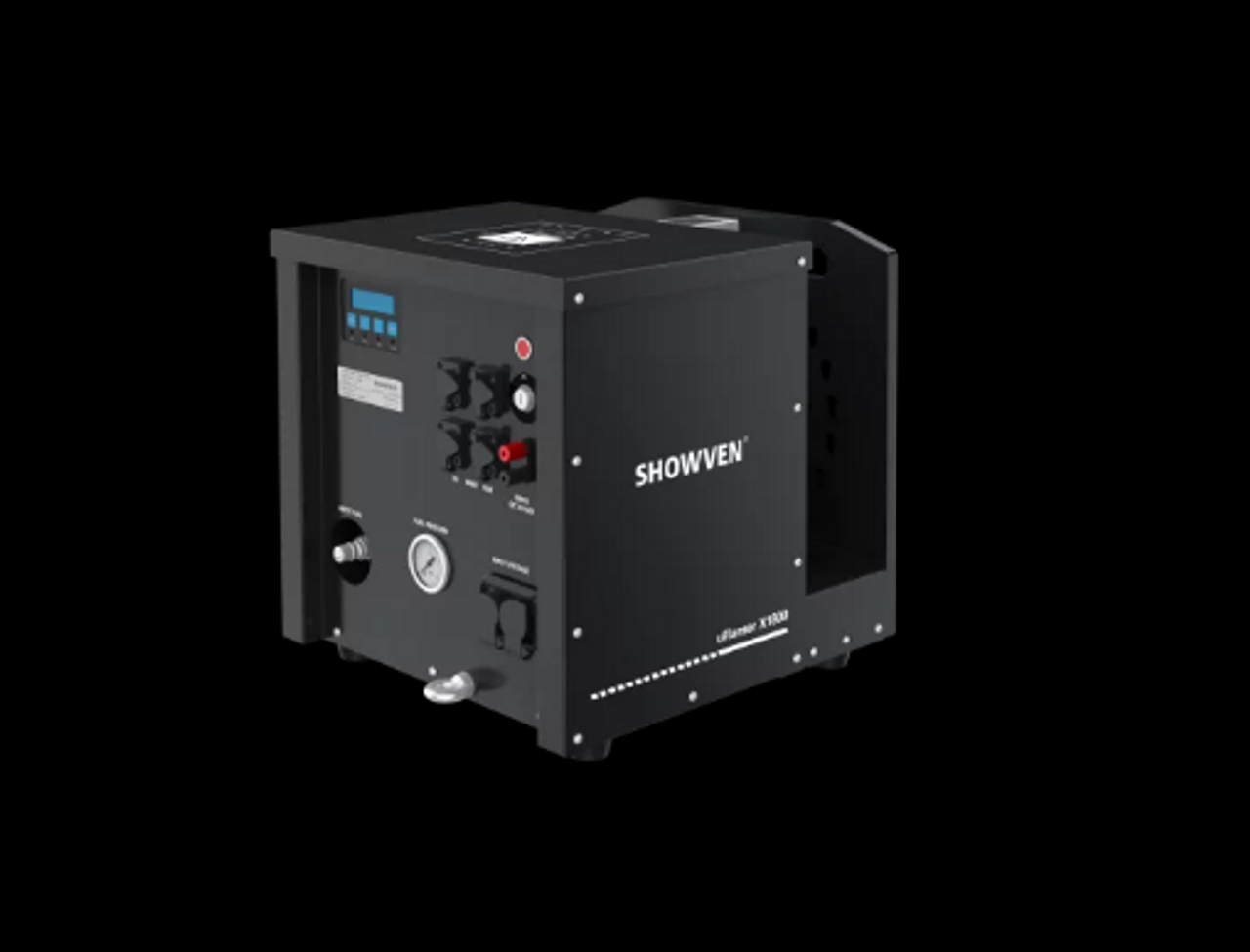

Flame Head – uFlamer® X1800
FLAME SYSTEM is a hydraulic based flame effect solution for project or truss mounted installations. It is consist of flame head, pump station, control box and accessories such as hoses, cables etc. It can easily achieve remote fuel supply with the pump station and no nitrogen tank needed. Any installation direction of flame heads brings endless design inspiration to event planners. In order to meet the requirements of different application scenarios we designed two pump station (uPumper® P20 and uPumper® P4) and two flame heads (uFlamer® PF10 and uFlamer® X1800).
Specifications:
Dimension：370 x 380 x 380 mm Net Weight：19 kg Housing material：304 Stainless steel Input：220V, 110V Work power：260W Flame height：Up to 10m USAGE IN RAIN: yes Quick Couplers: ISO7241B G1/4 male Min. firing duration: 0.1s Firing Angle: 210° (±105°) Fuel: ISOPAR Fuel consumption: 60ml/s (Nozzle M), 30ml/s (Nozzle L) Ignition: Dual, high voltage electron ignition Control: DMX, 9-60V Pyro signal USAGE IN RAIN: yes WORK PRESSURE RANGE: 8-12bar INSTALLATION ANGLES: Any direction,bottom plate need protective cover (optional) to achieve waterproof functio
Features and advantages
210° swivel angles, can be used in rain Dual solenoid valve for extra safety Dual ignitor ensure successful ignition 88 preset firing sequences, easy to operate Stainless steel housing Built-in accumulator DMX control, Support 9-60V pyro signalDISCLAIMER/WAIVER: This machine can be damaged and unstable if you do not follow the procedures carefully. You can {Seriously} hurt yourself or someone else if you do not follow the procedures that are noted in the manual carefully. By purchasing this confetti gun, you accept full responsibility. "Nightlife Supplies USA" reserves the right to refuse service and or sale of this product to any company or individual if they feel that it is not to the best interest of the company or if they pose a treat towards the use of this device. Nightlife Supplies USA is also not responsible for any injury cased by this item. Operate only if you are 18 + older or under adult supervision. A 20% restocking fee is charged on orders that are placed, transferred from manufacturer over, then cancelled by customer after transfer has been made. Restocking fee also applies if the order is cancelled 5 days after the delivery time. Return shipping will be paid by customer.
