Product Description
Data Stream 8

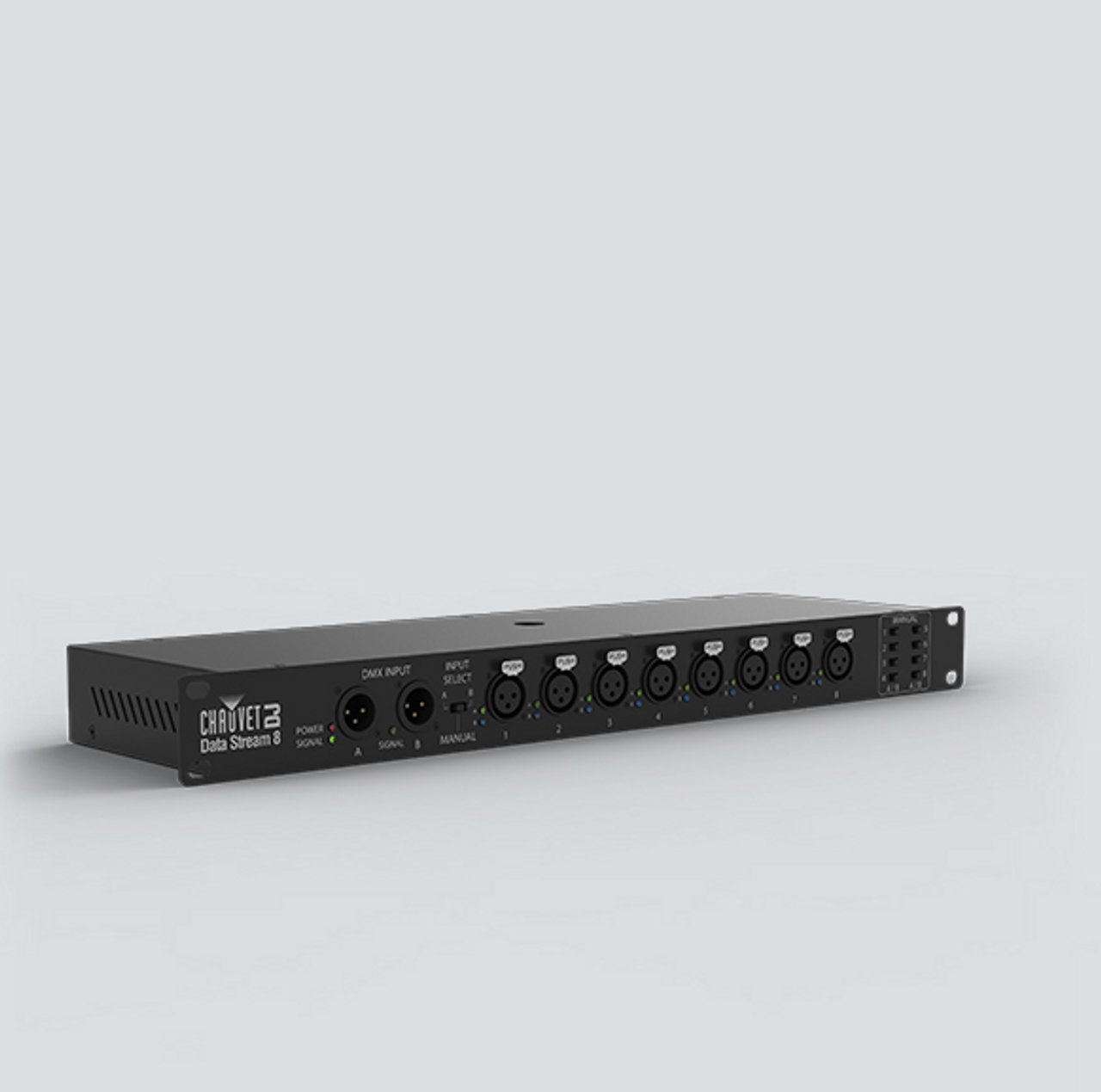

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.
Specifications
- DMX Connectors: 3-pin XLR
- Rackmount: 1U
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz
2 W, 0.03 A @ 230 V, 50 Hz - Weight: 4.6 lbs (2.1 kg)
- Size: 19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
- Approvals: CE
WHAT'S INCLUDED
- Data Stream 8
- Power cord
- Warranty card
- Quick Reference Guide
